Classification with Python

Posted on Edited on Views: Views: Valine:

This is my assignment of final project of IBM online course Machine Learning with Python via Coursera.

In this notebook we will build a classifier to predict whether a loan case will be paid off or not. We will load a historical dataset from previous loan applications, clean the data, and apply different classification algorithm on the data. The results is reported as the accuracy of each classifier, using the following metrics when these are applicable.

Algorithms Evaluation
K Nearest Neibhbor (KNN)
Decision Tree (DT)
Support Vector Machine (SVM)
Logistic Regression (LR)		 Jaccard index
F1-score
LogLoass

Table of Contents

In this notebook we try to practice all the classification algorithms that we learned in this course.

We load a dataset using Pandas library, and apply the following algorithms, and find the best one for this specific dataset by accuracy evaluation methods.

  • K Nearest Neibhbor (KNN)
  • Decision Tree (DT)
  • Support Vector Machine (SVM)
  • Logistic Regression (LR)

1. Environment And Dataset

Lets first load required libraries:

1
2
3
4
5
6
7
8
9
10
11
import itertools
import numpy as np
import pandas as pd

import matplotlib.pyplot as plt
from matplotlib.ticker import NullFormatter
import matplotlib.ticker as ticker

import warnings
warnings.filterwarnings('ignore')
%matplotlib inline

1.1. About Dataset

This dataset is about past loans. The Loan_train.csv data set includes details of 346 customers whose loan are already paid off or defaulted. It includes following fields:

Field Description
Loan_status Whether a loan is paid off on in collection
Principal Basic principal loan amount at the
Terms Origination terms which can be weekly (7 days), biweekly, and monthly payoff schedule
Effective_date When the loan got originated and took effects
Due_date Since it’s one-time payoff schedule, each loan has one single due date
Age Age of applicant
Education Education of applicant
Gender The gender of applicant

Lets download the dataset

!wget -O loan_train.csv https://s3-api.us-geo.objectstorage.softlayer.net/cf-courses-data/CognitiveClass/ML0101ENv3/labs/loan_train.csv

1.2. Load Data From CSV File

1
2
df = pd.read_csv('loan_train.csv')
df.head()

Unnamed: 0 Unnamed: 0.1 loan_status Principal terms effective_date due_date age education Gender
0 0 0 PAIDOFF 1000 30 9/8/2016 10/7/2016 45 High School or Below male
1 2 2 PAIDOFF 1000 30 9/8/2016 10/7/2016 33 Bechalor female
2 3 3 PAIDOFF 1000 15 9/8/2016 9/22/2016 27 college male
3 4 4 PAIDOFF 1000 30 9/9/2016 10/8/2016 28 college female
4 6 6 PAIDOFF 1000 30 9/9/2016 10/8/2016 29 college male
1
df.shape
(346, 10)

1.3. Convert To Date Time Object

1
2
3
df['due_date'] = pd.to_datetime(df['due_date'])
df['effective_date'] = pd.to_datetime(df['effective_date'])
df.head()

Unnamed: 0 Unnamed: 0.1 loan_status Principal terms effective_date due_date age education Gender
0 0 0 PAIDOFF 1000 30 2016-09-08 2016-10-07 45 High School or Below male
1 2 2 PAIDOFF 1000 30 2016-09-08 2016-10-07 33 Bechalor female
2 3 3 PAIDOFF 1000 15 2016-09-08 2016-09-22 27 college male
3 4 4 PAIDOFF 1000 30 2016-09-09 2016-10-08 28 college female
4 6 6 PAIDOFF 1000 30 2016-09-09 2016-10-08 29 college male

2. Pre-processing With Data Visualization

Libs used in this section.

1
2
from sklearn import preprocessing
import seaborn as sns

2.1. Visulaition The Data

Let’s see how many of each class is in our data set

1
df['loan_status'].value_counts()
PAIDOFF       260
COLLECTION     86
Name: loan_status, dtype: int64

260 people have paid off the loan on time while 86 have gone into collection

Lets plot some columns to underestand data better:

1
2
3
# Please install seborn libary if you did not have done so.
# notice: installing seaborn might takes a few minutes.
!conda install -c anaconda seaborn -y

Let’s see the Loan status of different pricipal, per gender.

1
2
3
4
5
6
bins = np.linspace(df.Principal.min(), df.Principal.max(), 10)
g = sns.FacetGrid(df, col="Gender", hue="loan_status", palette="Set1", col_wrap=2)
g.map(plt.hist, 'Principal', bins=bins, ec="k")

g.axes[-1].legend()
plt.show()

Let’s see the Loan status of different age, per gender.

1
2
3
4
5
6
bins = np.linspace(df.age.min(), df.age.max(), 10)
g = sns.FacetGrid(df, col="Gender", hue="loan_status", palette="Set1", col_wrap=2)
g.map(plt.hist, 'age', bins=bins, ec="k")

g.axes[-1].legend()
plt.show()

Lets look at the day of the week people get the loan.

1
2
3
4
5
6
df['dayofweek'] = df['effective_date'].dt.dayofweek
bins = np.linspace(df.dayofweek.min(), df.dayofweek.max(), 10)
g = sns.FacetGrid(df, col="Gender", hue="loan_status", palette="Set1", col_wrap=2)
g.map(plt.hist, 'dayofweek', bins=bins, ec="k")
g.axes[-1].legend()
plt.show()

We see that people who get the loan at the end of the week dont pay it off, so lets use Feature binarization to set a threshold values less then day 4

1
2
df['weekend'] = df['dayofweek'].apply(lambda x: 1 if (x>3)  else 0)
df.head()

Unnamed: 0 Unnamed: 0.1 loan_status Principal terms effective_date due_date age education Gender dayofweek weekend
0 0 0 PAIDOFF 1000 30 2016-09-08 2016-10-07 45 High School or Below male 3 0
1 2 2 PAIDOFF 1000 30 2016-09-08 2016-10-07 33 Bechalor female 3 0
2 3 3 PAIDOFF 1000 15 2016-09-08 2016-09-22 27 college male 3 0
3 4 4 PAIDOFF 1000 30 2016-09-09 2016-10-08 28 college female 4 1
4 6 6 PAIDOFF 1000 30 2016-09-09 2016-10-08 29 college male 4 1

2.2. Categorical Encoding

For categorical variables, we need convert them into numeric format (encoding) to fit in our Machine Learning algorithms. Whereas there are many method to implement, we introduce two common approaches here, Label Encoding and One Hot Encoding, for feature gender and education here, repspctively.

You may find more information here: Guide to Encoding Categorical Values in Python

2.2.1. Gender

Lets look at gender first:

1
df.groupby(['Gender'])['loan_status'].value_counts(normalize=True)
Gender  loan_status
female  PAIDOFF        0.865385
        COLLECTION     0.134615
male    PAIDOFF        0.731293
        COLLECTION     0.268707
Name: loan_status, dtype: float64

86 % of female pay there loans while only 73 % of males pay there loan

Lets convert male to 0 and female to 1:

1
2
df['Gender'].replace(to_replace=['male','female'], value=[0,1],inplace=True)
df.head()

Unnamed: 0 Unnamed: 0.1 loan_status Principal terms effective_date due_date age education Gender dayofweek weekend
0 0 0 PAIDOFF 1000 30 2016-09-08 2016-10-07 45 High School or Below 0 3 0
1 2 2 PAIDOFF 1000 30 2016-09-08 2016-10-07 33 Bechalor 1 3 0
2 3 3 PAIDOFF 1000 15 2016-09-08 2016-09-22 27 college 0 3 0
3 4 4 PAIDOFF 1000 30 2016-09-09 2016-10-08 28 college 1 4 1
4 6 6 PAIDOFF 1000 30 2016-09-09 2016-10-08 29 college 0 4 1

2.2.2. Education

For education, there are four different values in data set, we will apply One Hot Encoding to this feature.

1
df.groupby(['education'])['loan_status'].value_counts(normalize=True)
education             loan_status
Bechalor              PAIDOFF        0.750000
                      COLLECTION     0.250000
High School or Below  PAIDOFF        0.741722
                      COLLECTION     0.258278
Master or Above       COLLECTION     0.500000
                      PAIDOFF        0.500000
college               PAIDOFF        0.765101
                      COLLECTION     0.234899
Name: loan_status, dtype: float64

Befor One Hot Encoding

1
df.head()

Unnamed: 0 Unnamed: 0.1 loan_status Principal terms effective_date due_date age education Gender dayofweek weekend
0 0 0 PAIDOFF 1000 30 2016-09-08 2016-10-07 45 High School or Below 0 3 0
1 2 2 PAIDOFF 1000 30 2016-09-08 2016-10-07 33 Bechalor 1 3 0
2 3 3 PAIDOFF 1000 15 2016-09-08 2016-09-22 27 college 0 3 0
3 4 4 PAIDOFF 1000 30 2016-09-09 2016-10-08 28 college 1 4 1
4 6 6 PAIDOFF 1000 30 2016-09-09 2016-10-08 29 college 0 4 1
1
df.describe()

Unnamed: 0 Unnamed: 0.1 Principal terms age Gender dayofweek weekend
count 346.000000 346.000000 346.000000 346.000000 346.000000 346.000000 346.000000 346.000000
mean 202.167630 202.167630 943.641618 22.653179 30.939306 0.150289 3.682081 0.592486
std 115.459715 115.459715 109.425530 7.991006 6.039418 0.357872 2.614912 0.492084
min 0.000000 0.000000 300.000000 7.000000 18.000000 0.000000 0.000000 0.000000
25% 107.250000 107.250000 900.000000 15.000000 27.000000 0.000000 0.250000 0.000000
50% 204.500000 204.500000 1000.000000 30.000000 30.000000 0.000000 5.000000 1.000000
75% 298.750000 298.750000 1000.000000 30.000000 35.000000 0.000000 6.000000 1.000000
max 399.000000 399.000000 1000.000000 30.000000 51.000000 1.000000 6.000000 1.000000
1
2
features = ['Principal','terms','age','Gender','education']
df[features].head()

Principal terms age Gender education
0 1000 30 45 0 High School or Below
1 1000 30 33 1 Bechalor
2 1000 15 27 0 college
3 1000 30 28 1 college
4 1000 30 29 0 college

One Hot Encoding

Use One Hot Encoding technique to conver categorical varables to binary variables and append them to the feature Data Frame.

Here we use pandas function get_dummies.

1
2
3
4
Feature = df[['Principal','terms','age','Gender','weekend']]
Feature = pd.concat([Feature,pd.get_dummies(df['education'])], axis=1)
Feature.drop(['Master or Above'], axis = 1,inplace=True)
Feature.head()

Principal terms age Gender weekend Bechalor High School or Below college
0 1000 30 45 0 0 0 1 0
1 1000 30 33 1 0 1 0 0
2 1000 15 27 0 0 0 0 1
3 1000 30 28 1 1 0 0 1
4 1000 30 29 0 1 0 0 1

2.3. Feature Selection

Lets defind feature sets, X:

1
2
X = Feature
X[0:5]

Principal terms age Gender weekend Bechalor High School or Below college
0 1000 30 45 0 0 0 1 0
1 1000 30 33 1 0 1 0 0
2 1000 15 27 0 0 0 0 1
3 1000 30 28 1 1 0 0 1
4 1000 30 29 0 1 0 0 1

What are our lables?

1
2
y = df['loan_status'].values
y[0:5]
array(['PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF'],
      dtype=object)

2.4. Normalize Data

Data Standardization give data zero mean and unit variance (technically should be done after train test split )

1
2
X= preprocessing.StandardScaler().fit(X).transform(X)
X[0:5]
array([[ 0.51578458,  0.92071769,  2.33152555, -0.42056004, -1.20577805,
        -0.38170062,  1.13639374, -0.86968108],
       [ 0.51578458,  0.92071769,  0.34170148,  2.37778177, -1.20577805,
         2.61985426, -0.87997669, -0.86968108],
       [ 0.51578458, -0.95911111, -0.65321055, -0.42056004, -1.20577805,
        -0.38170062, -0.87997669,  1.14984679],
       [ 0.51578458,  0.92071769, -0.48739188,  2.37778177,  0.82934003,
        -0.38170062, -0.87997669,  1.14984679],
       [ 0.51578458,  0.92071769, -0.3215732 , -0.42056004,  0.82934003,
        -0.38170062, -0.87997669,  1.14984679]])

3. Classification

Now, it is your turn, use the training set to build an accurate model. Then use the test set to report the accuracy of the model
You should use the following algorithm:

  • K Nearest Neighbor(KNN)
  • Decision Tree
  • Support Vector Machine
  • Logistic Regression

Common Libararies Needed for all models

1
2
from sklearn.model_selection import train_test_split as split
from sklearn import metrics

3.1. K Nearest Neighbor(KNN)

Notice: You should find the best k to build the model with the best accuracy.

warning: You should not use the loan_test.csv for finding the best k, however, you can split your train_loan.csv into train and test to find the best k.

1
from sklearn.neighbors import KNeighborsClassifier
1
2
3
4
5
6
7
8
9
10
11
12
X_train, X_test, y_train, y_test = split( X, y, test_size = 0.2 , random_state = 4 )

def Train_Pre_Accurany(k):
    #Train Model and Predict

    neigh = KNeighborsClassifier(n_neighbors = k).fit(X_train,y_train)
    yhat = neigh.predict(X_test)

#     Train_Accuracy = metrics.accuracy_score(y_train, neigh.predict(X_train))
    Test_Accuracy = metrics.accuracy_score(y_test, yhat)

    return Test_Accuracy
1
2
3
4
5
6
7
8
9
10
11
12
13
# find best k according to test_accurancy
Ks = 15
Test_accuracies = np.zeros(Ks)
best_accuracy = 0
best_k = 0
for k in range(1, Ks):
    accuracy = Train_Pre_Accurany(k)
    Test_accuracies[k] = accuracy
    if accuracy > best_accuracy:
        best_accuracy = accuracy
        best_k = k

best_k
7
1
Test_accuracies
array([0.        , 0.67142857, 0.65714286, 0.71428571, 0.68571429,
       0.75714286, 0.71428571, 0.78571429, 0.75714286, 0.75714286,
       0.67142857, 0.7       , 0.72857143, 0.7       , 0.7       ])
1
2
3
4
5
6
7
8
9
10
11

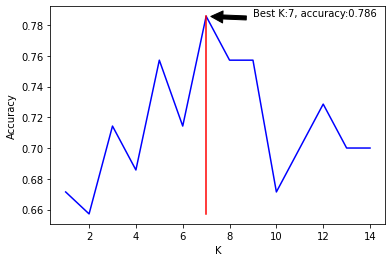

plt.plot(range(1,Ks), Test_accuracies[1:], 'b')
plt.annotate('Best K:{}, accuracy:{:.3f}'.format(best_k, best_accuracy),
             xy=(best_k, best_accuracy), xytext = ( best_k + 2, best_accuracy),
             arrowprops=dict(facecolor='black', shrink=0.1)
            )
line = [(best_k, best_k), (min(Test_accuracies[1:]), best_accuracy),'r',]
plt.plot(*line)

plt.ylabel('Accuracy')
plt.xlabel('K')
plt.show();
1
best_k
7
1
2
kNeighbor = KNeighborsClassifier(n_neighbors = best_k).fit(X_train,y_train)
sum(y_test == kNeighbor.predict(X_test))/len(y_test)
0.7857142857142857
1
kNeighbor
KNeighborsClassifier(algorithm='auto', leaf_size=30, metric='minkowski',
                     metric_params=None, n_jobs=None, n_neighbors=7, p=2,
                     weights='uniform')

3.2. Decision Tree

1
2
from sklearn.tree import DecisionTreeClassifier
from sklearn import tree
1
2
3
4
5
loanTree = DecisionTreeClassifier(criterion="entropy", max_depth = 4)
loanTree.fit(X_train,y_train)

yhat = loanTree.predict(X_train)
sum(y_train == yhat )/len(y_train)
0.7463768115942029

Visualization

1
2
3
from sklearn.externals.six import StringIO
import pydotplus
import matplotlib.image as mpimg
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
dot_data = StringIO()
filename = 'loanTree.png'
featureNames = Feature.columns
targetNames = ['PAIDOFF', 'COLLECTION']

out = tree.export_graphviz(loanTree, feature_names = featureNames, out_file = dot_data,
                           class_names=np.unique(y), filled=True,
                           special_characters=True, rotate=False,
                          )


graph = pydotplus.graph_from_dot_data(dot_data.getvalue())
graph.write_png(filename)

img = mpimg.imread(filename)
plt.figure(figsize=(100,200))
plt.imshow(img, interpolation='nearest')
<matplotlib.image.AxesImage at 0x7f9e2f1b37f0>

3.3. Support Vector Machine

1
2
3
4
5
6
from sklearn import svm
svm_Model = svm.SVC(kernel='rbf')
svm_Model.fit(X_train, y_train)

yhat = svm_Model.predict(X_test)
sum(y_test == yhat)/len(y_test)
0.7428571428571429

3.4. Logistic Regression

1
2
#from sklearn.linear_model import LogistricRegression
from sklearn.linear_model import LogisticRegression
1
2
3
4
5
6
LR_Model = LogisticRegression( C = 0.01, solver = 'liblinear')
LR_Model.fit(X_train, y_train)

lrYhat = LR_Model.predict(X_test)
lrYhat_prob = LR_Model.predict_proba(X_test)
sum(lrYhat == y_test)/len(y_test)
0.6857142857142857

4. Model Evaluation Using Test Data Set

1
2
3
4
from sklearn.metrics import jaccard_similarity_score
from sklearn.metrics import f1_score
from sklearn.metrics import log_loss
from sklearn.metrics import jaccard_score

First, download and load the test set:

!wget -O loan_test.csv https://s3-api.us-geo.objectstorage.softlayer.net/cf-courses-data/CognitiveClass/ML0101ENv3/labs/loan_test.csv

4.1. Load Test Data Set For Evaluation

1
2
test_df = pd.read_csv('loan_test.csv')
test_df.head()

Unnamed: 0 Unnamed: 0.1 loan_status Principal terms effective_date due_date age education Gender
0 1 1 PAIDOFF 1000 30 9/8/2016 10/7/2016 50 Bechalor female
1 5 5 PAIDOFF 300 7 9/9/2016 9/15/2016 35 Master or Above male
2 21 21 PAIDOFF 1000 30 9/10/2016 10/9/2016 43 High School or Below female
3 24 24 PAIDOFF 1000 30 9/10/2016 10/9/2016 26 college male
4 35 35 PAIDOFF 800 15 9/11/2016 9/25/2016 29 Bechalor male

4.2. Pre-processing Test Data Set

1
2
3
4
test_df['due_date'] = pd.to_datetime(test_df['due_date'])
test_df['effective_date'] = pd.to_datetime(test_df['effective_date'])

test_df.head()

Unnamed: 0 Unnamed: 0.1 loan_status Principal terms effective_date due_date age education Gender
0 1 1 PAIDOFF 1000 30 2016-09-08 2016-10-07 50 Bechalor female
1 5 5 PAIDOFF 300 7 2016-09-09 2016-09-15 35 Master or Above male
2 21 21 PAIDOFF 1000 30 2016-09-10 2016-10-09 43 High School or Below female
3 24 24 PAIDOFF 1000 30 2016-09-10 2016-10-09 26 college male
4 35 35 PAIDOFF 800 15 2016-09-11 2016-09-25 29 Bechalor male
1
test_df['loan_status'].value_counts()
PAIDOFF       40
COLLECTION    14
Name: loan_status, dtype: int64
1
2
3
4
test_df['dayofweek'] = test_df['effective_date'].dt.dayofweek
test_df['weekend'] = test_df['dayofweek'].apply(lambda x: 1 if x > 3 else 0)
test_df['Gender'].replace(to_replace=['male','female'], value=[0,1], inplace = True)
test_df.head()

Unnamed: 0 Unnamed: 0.1 loan_status Principal terms effective_date due_date age education Gender dayofweek weekend
0 1 1 PAIDOFF 1000 30 2016-09-08 2016-10-07 50 Bechalor 1 3 0
1 5 5 PAIDOFF 300 7 2016-09-09 2016-09-15 35 Master or Above 0 4 1
2 21 21 PAIDOFF 1000 30 2016-09-10 2016-10-09 43 High School or Below 1 5 1
3 24 24 PAIDOFF 1000 30 2016-09-10 2016-10-09 26 college 0 5 1
4 35 35 PAIDOFF 800 15 2016-09-11 2016-09-25 29 Bechalor 0 6 1
1
2
3
4
test_Feature = test_df[['Principal','terms','age','Gender','weekend']]
test_Feature = pd.concat([test_Feature, pd.get_dummies(test_df['education'])], axis = 1)
test_Feature.drop(['Master or Above'], axis = 1, inplace = True)
test_Feature.head()

Principal terms age Gender weekend Bechalor High School or Below college
0 1000 30 50 1 0 1 0 0
1 300 7 35 0 1 0 0 0
2 1000 30 43 1 1 0 1 0
3 1000 30 26 0 1 0 0 1
4 800 15 29 0 1 1 0 0
1
2
X_test = preprocessing.StandardScaler().fit(test_Feature).transform(test_Feature)
X_test[0:5]
array([[ 0.49362588,  0.92844966,  3.05981865,  1.97714211, -1.30384048,
         2.39791576, -0.79772404, -0.86135677],
       [-3.56269116, -1.70427745,  0.53336288, -0.50578054,  0.76696499,
        -0.41702883, -0.79772404, -0.86135677],
       [ 0.49362588,  0.92844966,  1.88080596,  1.97714211,  0.76696499,
        -0.41702883,  1.25356634, -0.86135677],
       [ 0.49362588,  0.92844966, -0.98251057, -0.50578054,  0.76696499,
        -0.41702883, -0.79772404,  1.16095912],
       [-0.66532184, -0.78854628, -0.47721942, -0.50578054,  0.76696499,
         2.39791576, -0.79772404, -0.86135677]])
1
2
y_test = test_df['loan_status'].values
y_test[0:5]
array(['PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF'],
      dtype=object)
1
y_test
array(['PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF',
       'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF',
       'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF',
       'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF',
       'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF',
       'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF',
       'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'PAIDOFF', 'COLLECTION',
       'COLLECTION', 'COLLECTION', 'COLLECTION', 'COLLECTION',
       'COLLECTION', 'COLLECTION', 'COLLECTION', 'COLLECTION',
       'COLLECTION', 'COLLECTION', 'COLLECTION', 'COLLECTION',
       'COLLECTION'], dtype=object)
1
2
3
4
5
kNByhat = kNeighbor.predict(X_test)
dTreeYhat = loanTree.predict(X_test)
svmYhat = svm_Model.predict(X_test)
lrYhat = LR_Model.predict(X_test)
lrYhat_prob = LR_Model.predict_proba(X_test)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
data = []
idx = ['KNN', 'Decision Tree', 'SVM','LogisticRegression']

for yhat, Model_Name in zip([kNByhat, dTreeYhat, svmYhat, lrYhat],idx ):

#     jaccard = jaccard_score(y_test, yhat, average = None )[-1]
    jaccard = jaccard_similarity_score ( y_test, yhat)

    F1 = f1_score(y_test, yhat, average='weighted')

    data.append({'Jaccard': jaccard,
                 'F1-score':F1,
                })
    print('{}'.format('-'*42))
    print('{:<21} Jaccard index: {:.2f}'.format(Model_Name, jaccard))
    print('{:<21}      F1-score: {:.2f}'.format('',F1))

data[-1]['LogLoss'] = log_loss(y_test, lrYhat_prob)
print('{:<21}       LogLoss: {:.2f}'.format('',data[-1]['LogLoss']))
------------------------------------------
KNN                   Jaccard index: 0.67
                           F1-score: 0.63
------------------------------------------
Decision Tree         Jaccard index: 0.72
                           F1-score: 0.74
------------------------------------------
SVM                   Jaccard index: 0.80
                           F1-score: 0.76
------------------------------------------
LogisticRegression    Jaccard index: 0.74
                           F1-score: 0.66
                            LogLoss: 0.57

5. Summary

You should be able to report the accuracy of the built model using different evaluation metrics:

1
2
3
4
accuracy_report = pd.DataFrame(data,
                         index = ['KNN', 'Decision Tree', 'SVM','LogisticRegression'],
                         columns = ['Jaccard','F1-score','LogLoss'],
                        )
1
2
pd.set_option('precision', 2)
accuracy_report

Jaccard F1-score LogLoss
KNN 0.67 0.63 NaN
Decision Tree 0.72 0.74 NaN
SVM 0.80 0.76 NaN
LogisticRegression 0.74 0.66 0.57

Want to learn more?

IBM SPSS Modeler is a comprehensive analytics platform that has many machine learning algorithms. It has been designed to bring predictive intelligence to decisions made by individuals, by groups, by systems – by your enterprise as a whole. A free trial is available through this course, available here: SPSS Modeler

Also, you can use Watson Studio to run these notebooks faster with bigger datasets. Watson Studio is IBM’s leading cloud solution for data scientists, built by data scientists. With Jupyter notebooks, RStudio, Apache Spark and popular libraries pre-packaged in the cloud, Watson Studio enables data scientists to collaborate on their projects without having to install anything. Join the fast-growing community of Watson Studio users today with a free account at Watson Studio

Thanks for completing this lesson!

Author: Saeed Aghabozorgi

Saeed Aghabozorgi, PhD is a Data Scientist in IBM with a track record of developing enterprise level applications that substantially increases clients’ ability to turn data into actionable knowledge. He is a researcher in data mining field and expert in developing advanced analytic methods like machine learning and statistical modelling on large datasets.

Copyright © 2018 Cognitive Class. This notebook and its source code are released under the terms of the MIT License.
